Window installation inside

Example of a primary and secondary node with all Torggler solutions.

1
2
3
4
5
6
7
8

1. Polyurethane foam



Flex 365

Flexible polyurethane foam for the assembly of wooden, PVC or aluminium window frames and shutters, up to -10 °C.
Alternative solution

F 2.0

Elastic one-component polyurethane foam for the assembly of window frames in wood, pvc or aluminium. It guarantees rapidity and cleaning during installation. Adheres to most porous and non-porous supports.
EC1plus_(GB)_black_

2. Internal insulating membrane

3. Compressed tape

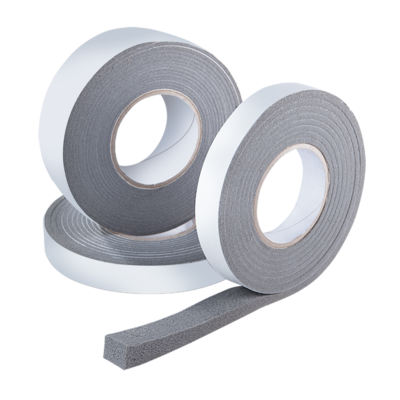

Self-expanding joint sealing tape EXP

Joint tape BG1 (600 Pa) is self-expanding pre-compressed sealing tape made of polyurethane foam impregnated with acrylic dispersion, for joints in building and construction, windows, metal constructions, timber houses, etc. It guarantee perfect thermal insulation between the window and the wall. If compressed between the two elements, they can be directly exposed to weather. The provide insulation against wind, draughts, noise, dust and rain.

4. Self-expanding tape



Self-expanding joint sealing tape EXP Multi

Multi-functional BG1/BGR pre-compressed, single-sided tape made of soft, fine-pored, permanently elastic polyurethane foam. For standard-compliant waterproofing of defined structural connection joints (windows and doors) and for sealing assembly joints between window and building shell.

5. Sealant



Window

Neutral curing single-component silicone sealant for the installation and sealing of connection and expansion joints between frames and walls.
EC1_(GB)_black_ F-EXT_INT-CC _25LM_EN15651_1 G-CC_25LM_EN15651-2
Alternative solution

Window Pro

Professional neutral single-component silicone sealant for windows and doors and the sealing between glass, frame and finishing on glass fastening elements. Compatible with double-glazing and PVB.
F-EXT_INT-CC _25LM_EN15651_1 G-CC_25LM_EN15651-2 S1_EN15651-3 EN12488

6. Adhesive



Hybrid LM

Low modulus of elasticity sealant, based on hybrid polymers, for façades and windows.
EC1plus_(GB)_black_ F-EXT_INT-CC _25LM_EN15651_1

7. Self-adhesive tape



PE tape

Single-sided adhesive, closed-cell PE sealing tape for the use on the underside of windows and doors. Maintains impermeability to water even in the presence of backwater.

8. Windowscrew



Window frame screw for PVC and wood

Special screw made of galvanised steel for fixing PVC and wood profiles to concrete, with high-low thread, flat countersunk head, TX30 drive and various lengths from 50 to 300 mm.
