Window installation outside

Example of a primary and secondary node with all Torggler solutions.

1
2
3
4
4
5
5
6

1. Polyurethane foams



Flex 365

Flexible polyurethane foam for the assembly of wooden, PVC or aluminium window frames and shutters, up to -10 °C.
Alternative solution

F 2.0

Elastic one-component polyurethane foam for the assembly of window frames in wood, pvc or aluminium. It guarantees rapidity and cleaning during installation. Adheres to most porous and non-porous supports.
EC1plus_(GB)_black_

2.



Hybrid HM

Single-component, hybrid polymer-based adhesive-sealant with anti mould agent for overpaintable elastic bonding and sealing of joints in construction and industry in general.
EC1plus_(GB)_black_ F-EXT_INT S

3. External insulating membrane

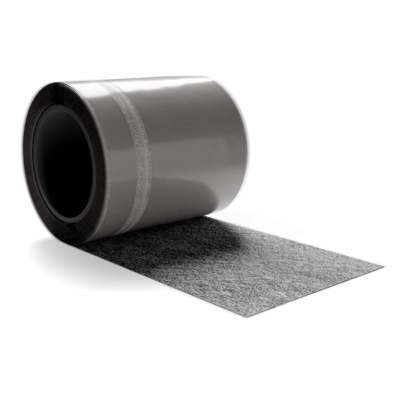

Insulation membrane ISO Outside

Insulating membrane for timber, PVC and aluminium windows and doors, made up of high-performance polymeric tape in water vapour-proof fabric (from the inside to the outside), which can be plastered and painted. The UV-resistant surface is coated with a high-quality acrylic adhesive. Applied on the inside of the primary joint between the wall and the sub-frame or window, it follows the movements of the connected parts thanks to its high elongation capacity.

4. Adhesive



Window Pro

Professional neutral single-component silicone sealant for windows and doors and the sealing between glass, frame and finishing on glass fastening elements. Compatible with double-glazing and PVB.
F-EXT_INT-CC _25LM_EN15651_1 G-CC_25LM_EN15651-2 S1_EN15651-3 EN12488


Window Pro

Professional neutral single-component silicone sealant for windows and doors and the sealing between glass, frame and finishing on glass fastening elements. Compatible with double-glazing and PVB.
F-EXT_INT-CC _25LM_EN15651_1 G-CC_25LM_EN15651-2 S1_EN15651-3 EN12488

5. Tapes

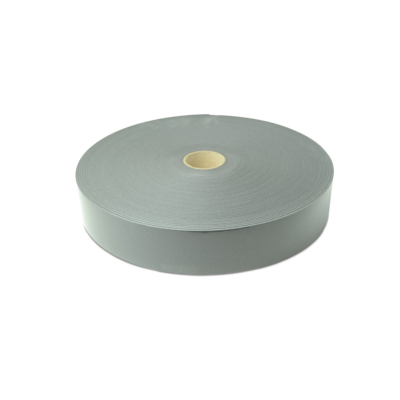

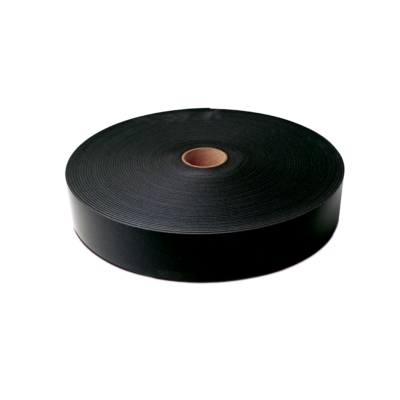

PE tape

Single-sided adhesive, closed-cell PE sealing tape for the use on the underside of windows and doors. Maintains impermeability to water even in the presence of backwater.

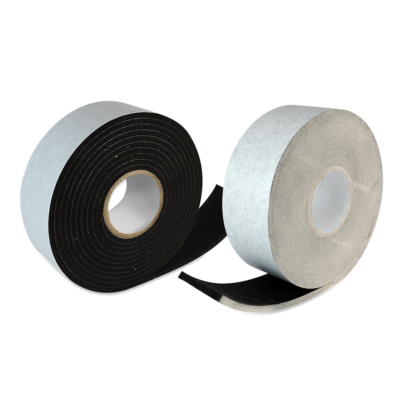

Self-expanding joint sealing tape EXP Multi

Multi-functional BG1/BGR pre-compressed, single-sided tape made of soft, fine-pored, permanently elastic polyurethane foam. For standard-compliant waterproofing of defined structural connection joints (windows and doors) and for sealing assembly joints between window and building shell.

6. Windowscrew



Window frame screw for PVC and wood

Special screw made of galvanised steel for fixing PVC and wood profiles to concrete, with high-low thread, flat countersunk head, TX30 drive and various lengths from 50 to 300 mm.
