Thermal Insulation

Termoz 6H

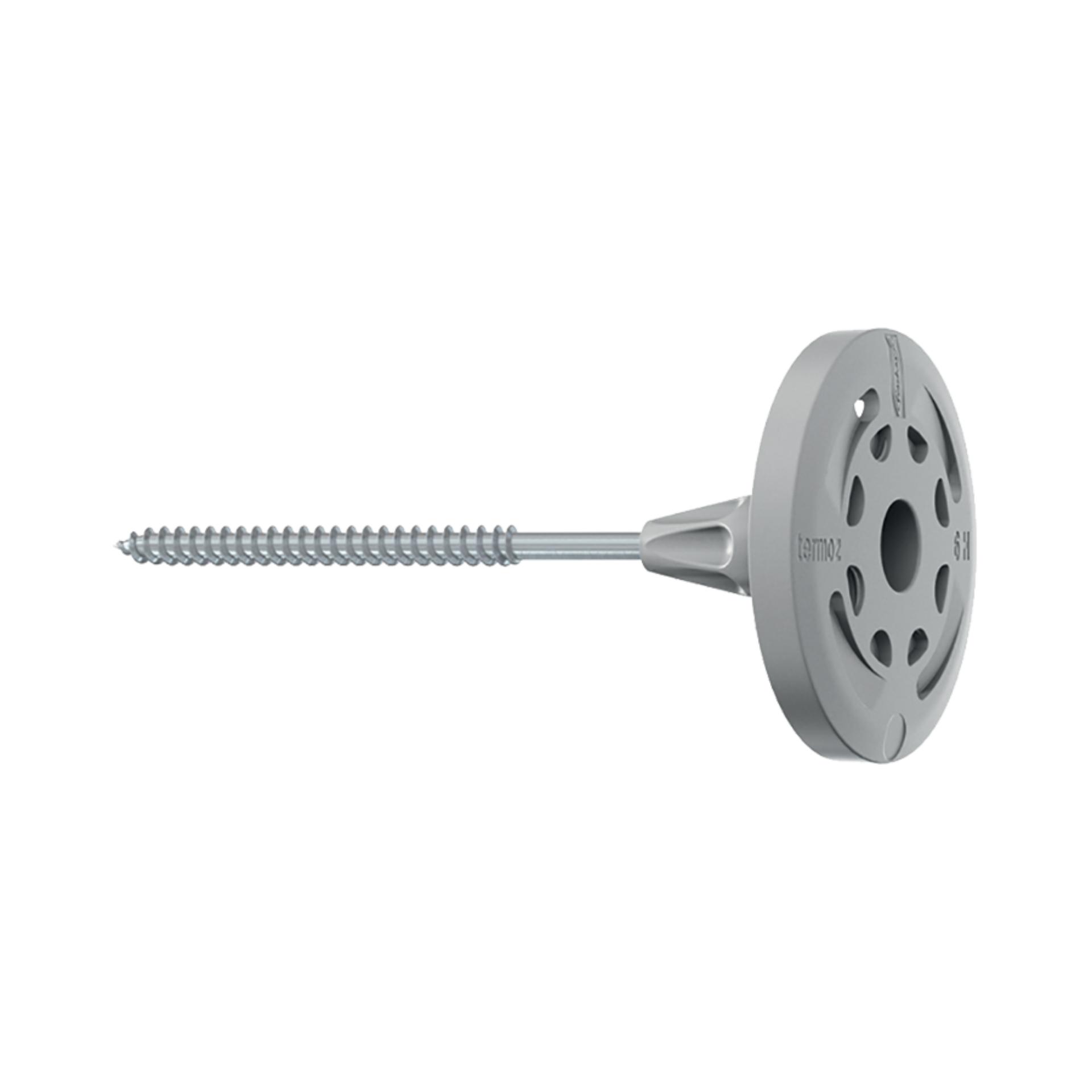

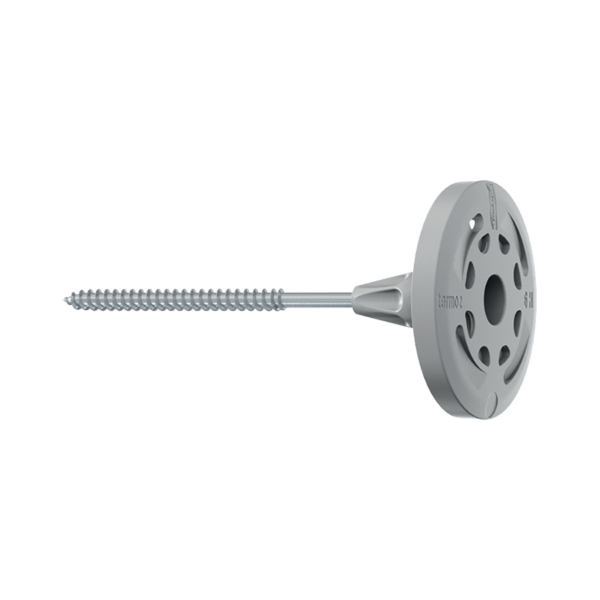

Screw-in anchor for installation on wooden structures, wooden panels, OSB, chipboards, MDF or gypsum fibre.

Screw-in anchor for installation on wooden structures, wooden panels, OSB, chipboards, MDF or gypsum fibre. It can be installed flush with the insulating panel or concealed by using the installation kit and subsequent application of the EPS PS D60 grey hole-cover plate or MW D60 mineral wool hole-cover plate.

Code Dimensions Thickness Packaging size Pallet Barcode
15427 80 mm 60 mm 100 piece 60 cardboards 8030334154270
15428 100 mm 80 mm 100 piece 30 cardboards 8030334154287
15429 120 mm 100 mm 100 piece 45 cardboards 8030334154294
15430 140 mm 120 mm 100 piece 54 cardboards 8030334154300
15431 160 mm 140 mm 100 piece 54 cardboards 8030334154317
15432 180 mm 160 mm 100 piece 45 cardboards 8030334154324
15433 200 mm 180 mm 100 piece 54 cardboards 8030334154331
15434 220 mm 200 mm 100 piece 54 cardboards 8030334154348
15435 240 mm 220 mm 100 piece 18 cardboard 8030334154355

Application area
